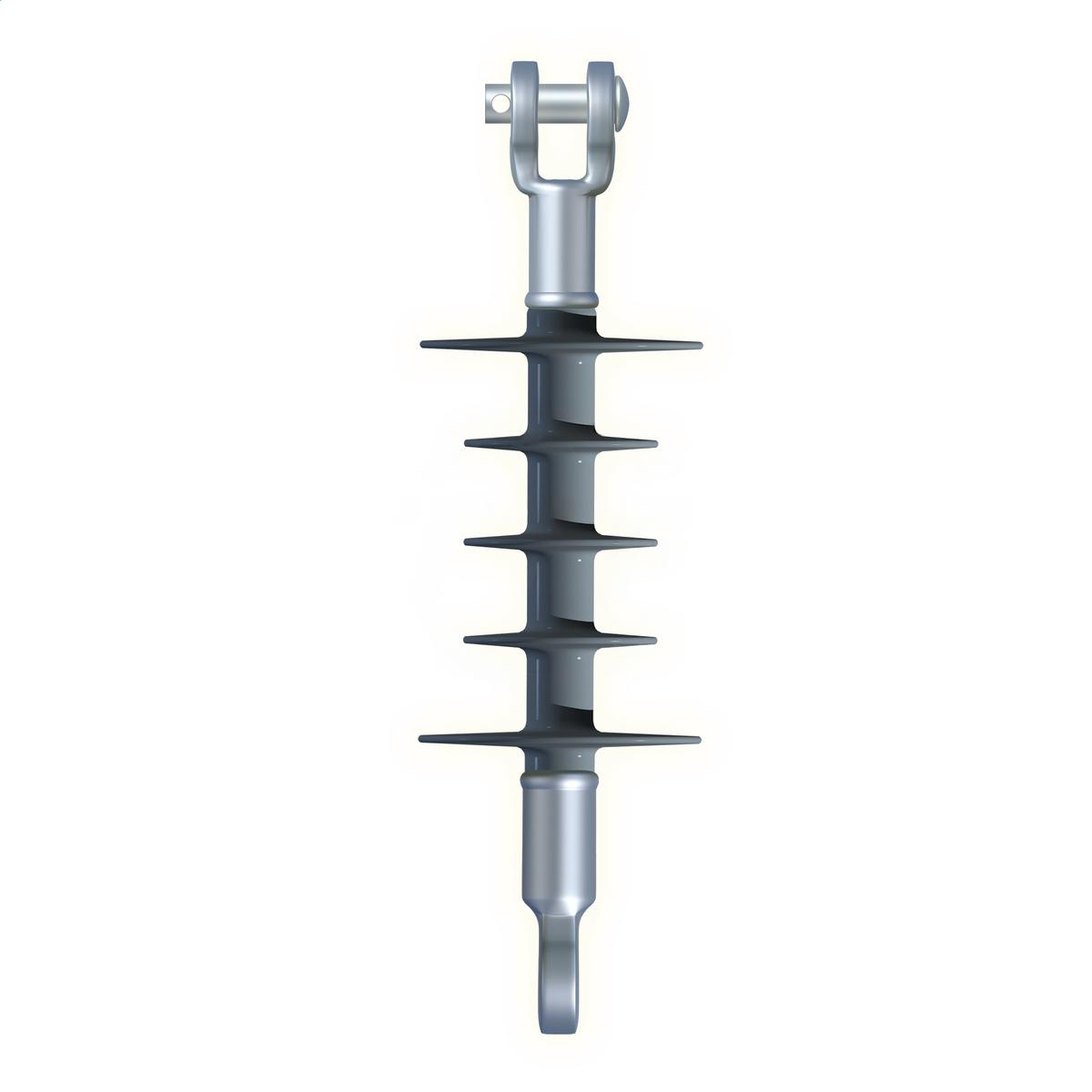

Silicone Polymer Deadend
Detailed sepcifications are in the PDF below
| Application | Deadend |
| Cantilever Bending Strength – Routine | 7500 |
| Fitting – Ground/Base | Clevis |
| Fitting – Live Line End | Tongue |
| Insulator Type | N/A |
| Material | Silicone Polymer |
| Material – End Fitting | Steel |
| Material – Pin (Cotter) | Stainless Steel |
| Number of Sheds | 8 |
| Shed Style | Uniform |
| Strength Rating – Ultimate | 15000 lb |
| Tensile Strength | 15 K |
| Tensile Strength – Routine | 7500 |
| Diameter – Shed(s) | 3 |
| Length – Effective | 25.0 in |
| Rod Diameter | 0.625 |
| Thickness – Housing | 0.148 |
| Weight | 2.94 lb |
| Arc Distance – Dry | 20 |
| Creep and Leakage Distance | 33 IN (838 mm) |
| Critical Impulse Flashover (CIFO) – Negative | 360 |
| Critical Impulse Flashover (CIFO) – Positive | 325 |
| Flashover Voltage – 60 Hz Dry | 200 |
| Flashover Voltage – 60 Hz Wet | 160 |
| Voltage – Line | 35000 V |
| Withstand Voltage – 60 Hz Dry | 170 |
| Withstand Voltage – 60 Hz Wet | 130 |
| Pallet Quantity | 300 |
| Standard Package | 15 |
| Specifications | Download PDF |
| Technical Drawings | Download PDF |
